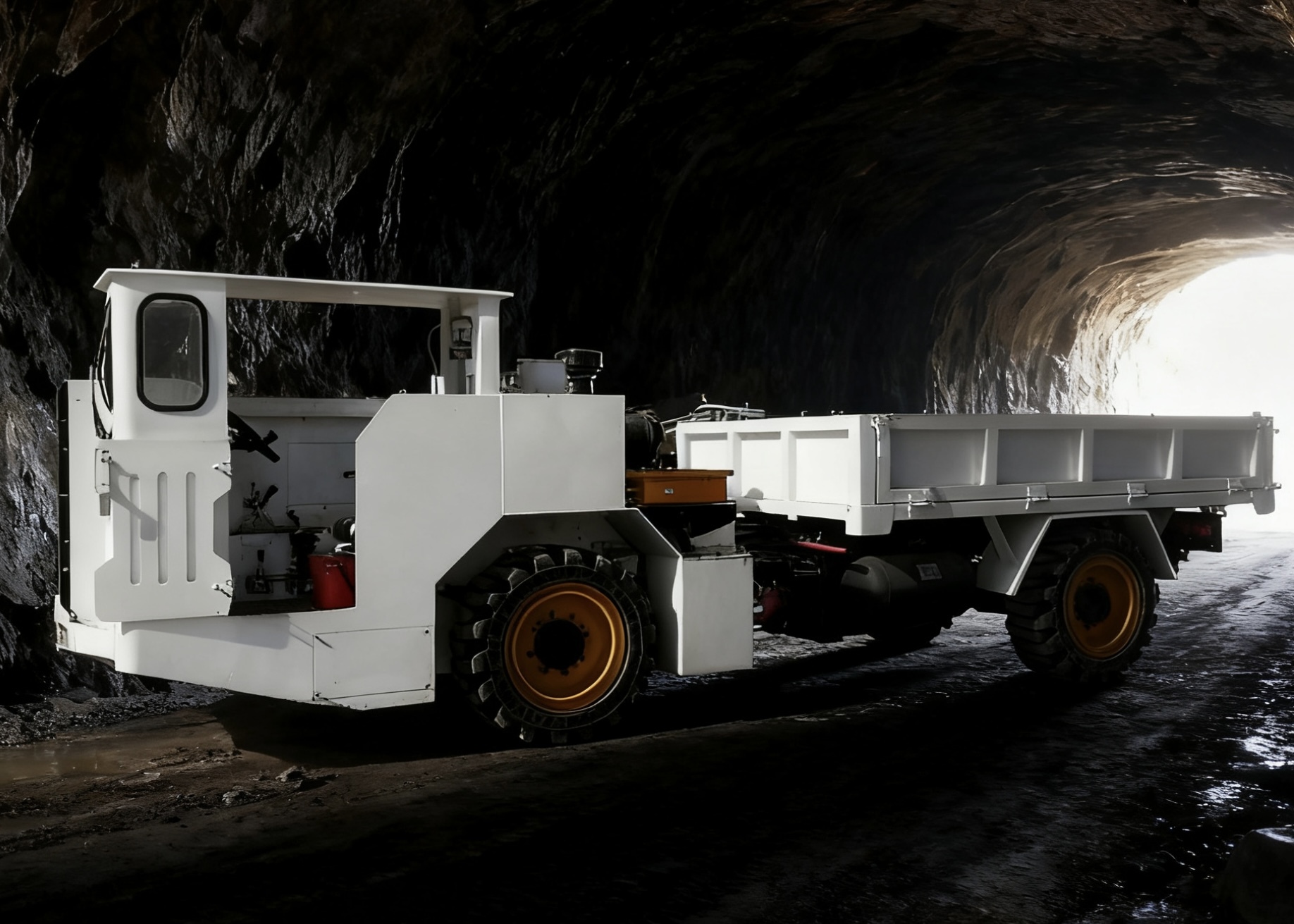

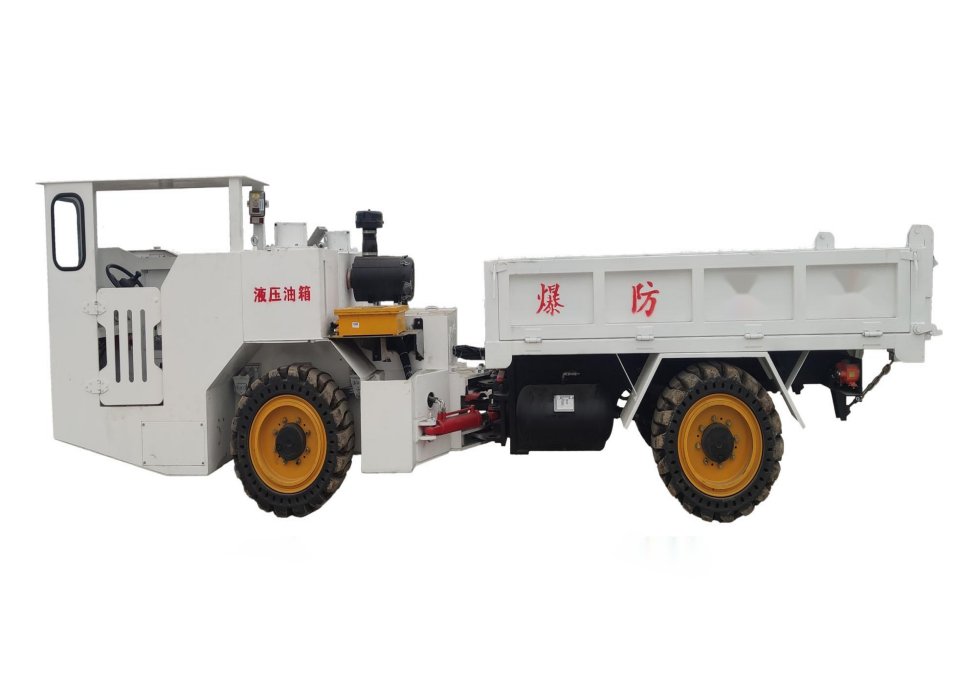

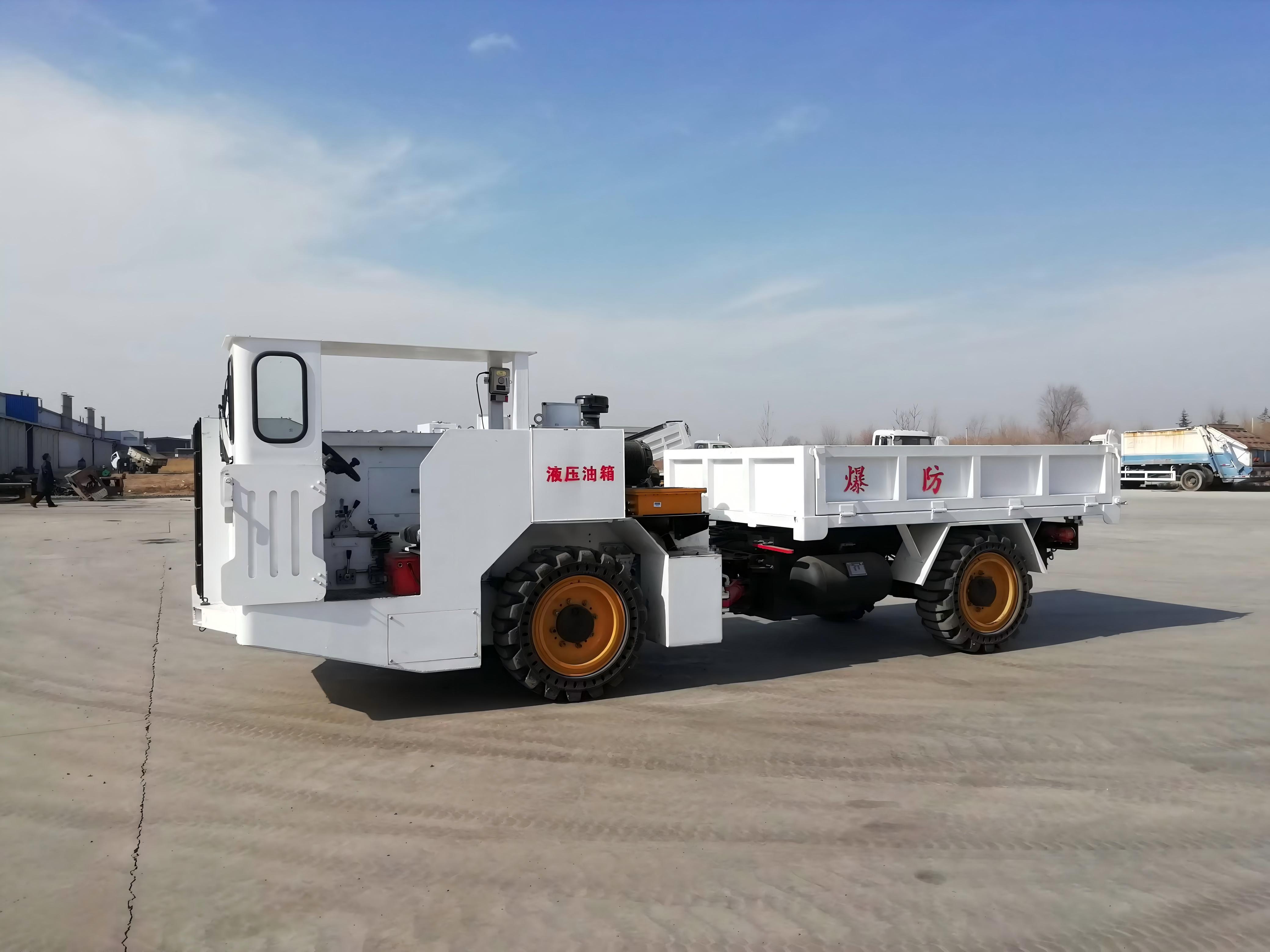

The WCJ8E(A) is a versatile flameproof vehicle with a low profile (min. height 2.03m, width 2m), designed for transporting materials and equipment in confined mine roadways. Its standard dump body is ideal for rock and bulk materials
Advanced Braking: Employs a reliable wet brake system. Service braking is hydraulic, spring-released on all four wheels. Emergency/Parking braking is spring-applied, hydraulically released.
Power & Drive: Uses our ZL6105DZLQFB China Phase III emission standard, air-start diesel engine. Coupled with 4x4 all-wheel drive, it delivers strong performance on.
Durable Structure: Welded frames with central articulation, hydraulic steering, and leaf spring suspension ensure robustness.
|
Item Main Technical Parameters |
|||||
|
Model |
WCJ8E(A) |
||||
|
Curb weight |
8750 |
||||
|
Rated Load Capacity (kg) |
8000 |
||||
|
Overall Dimensions L×W×H (mm) |
6920×2000×2030 |
||||
|
Wheelbase (mm) |
3250 |
||||
|
Front Track (mm) |
1590 |
||||
|
Rear Track (mm) |
1590 |
||||
|
Minimum Ground Clearance (Loaded, mm) |
250 |
||||
|
Gradeability (°) |
14 |
||||
|
Travel Speed per Gear (km/h) |
1st Gear |
10 |
|||
|
2nd Gear |
18 |
||||
|
3rd Gear |
30 |
||||
|
1st Reverse Gear |
10 |
||||
|
2nd Reverse Gear |
18 |
||||
|
3rd Reverse Gear |
30 |
||||
|
Minimum Turning Radius (mm) |
Outside(mm) |
5800 |
|||
|
Inside (mm) |
3500 |
||||
|
Maximum Traction Force (kN) |
60 |
||||
|
Transmission Type |
Hydraulic Transmission |
||||
|
Braking Type |
Service Brake |
Four-wheel braking, hydraulic release, wet disc brakes |
|||
|
Parking/Emergency Brake |
Four-wheel braking, spring-applied brake, hydraulic release, wet disc brakes, fail-safe |
||||
|
Drive Type |
Four-wheel drive |
||||
|
Fuel Tank Capacity(L) |
110 |
||||
|
Flameproof Diesel Engine Model |
ZL6105DZLQFB |
||||
|
Flameproof Diesel Engine Power (kW) |
73 |
||||
|
Flameproof Diesel Engine Rated Speed (r/min) |
2200 |
||||
|
Starting Method |
Air Start |
||||
|
Protection Type |
Flameproof electric protection |
||||
|
Approach Angle (°) |
15 |
||||
|
Departure Angle (°) |
32 |
||||
|
Rear Overhang (mm) |
1520 |
||||
|
Axle Load |
Unladen (kg) |
Front Axle |
6320 |
||
|
Rear Axle |
2430 |
||||
|
Fully Laden (kg) |
Front Axle |
6720 |
|||
|
Rear Axle |
10030 |
||||
