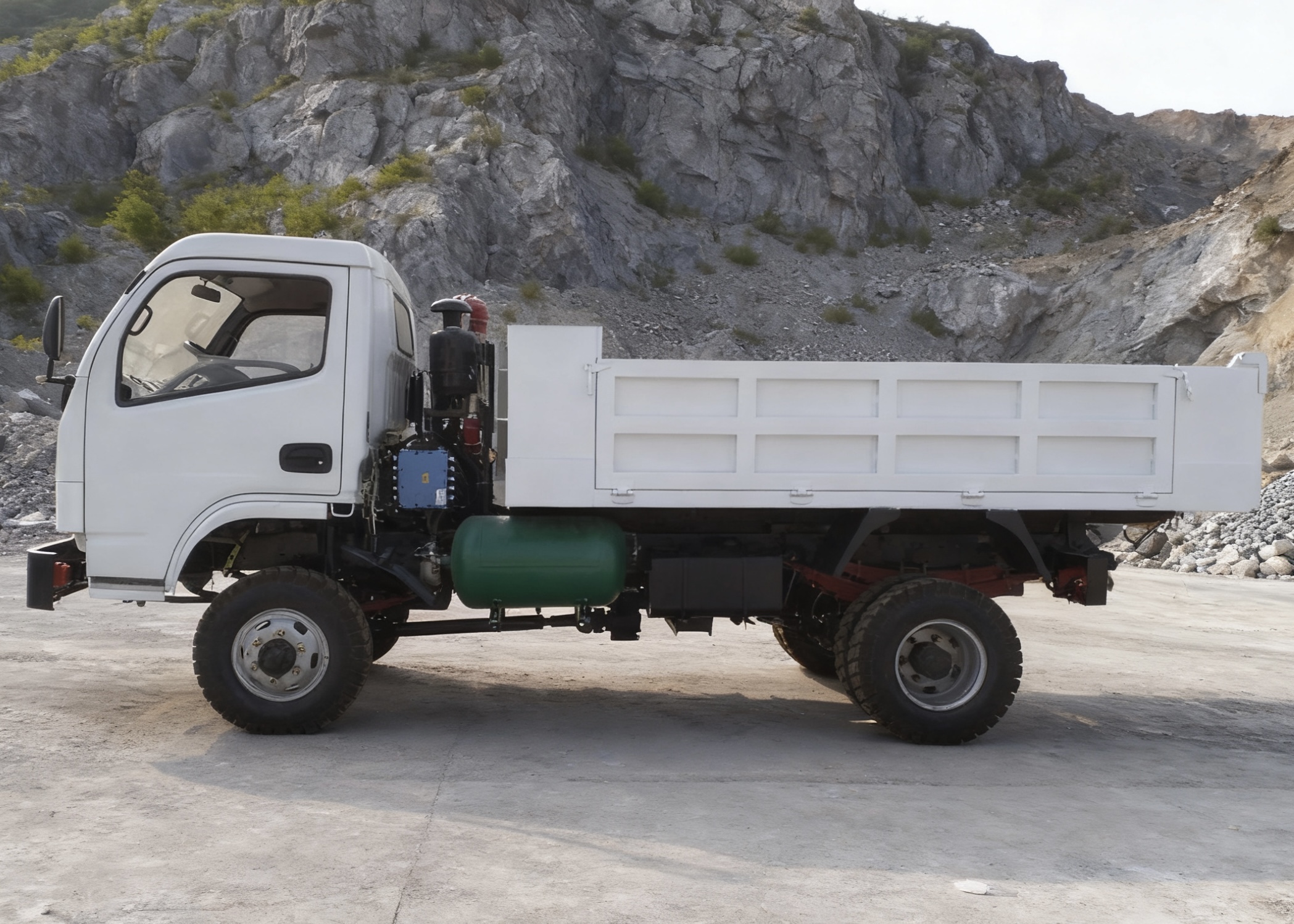

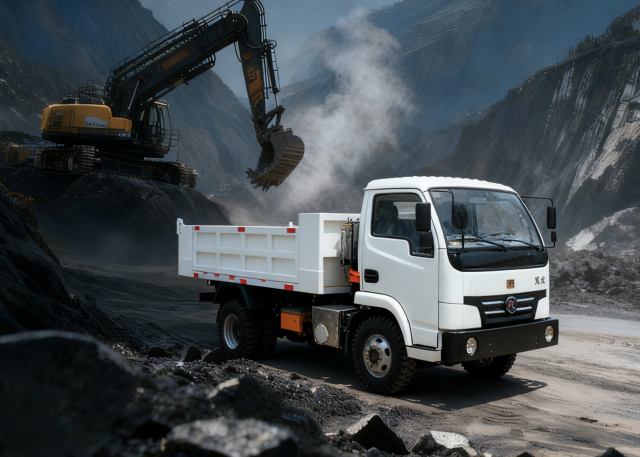

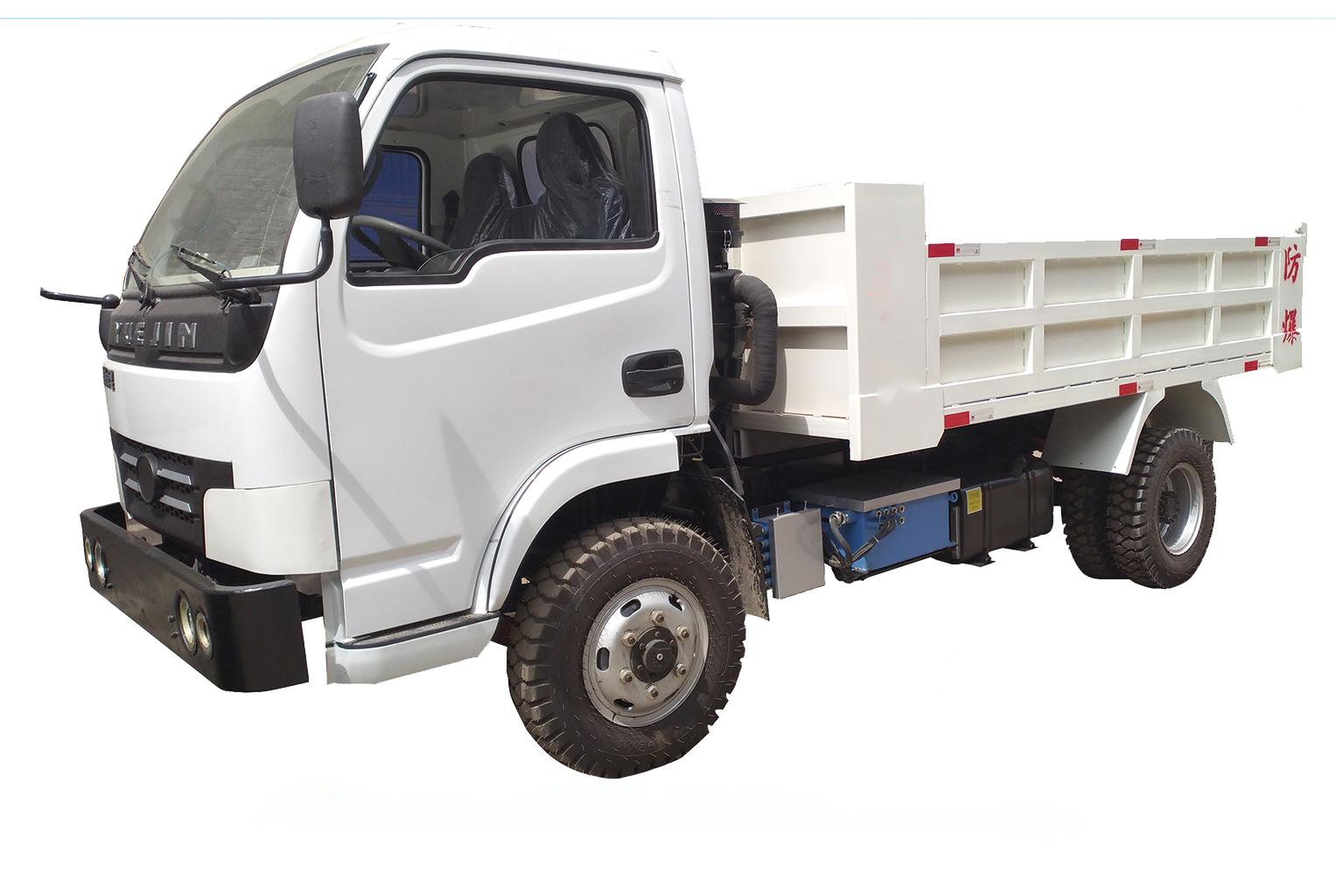

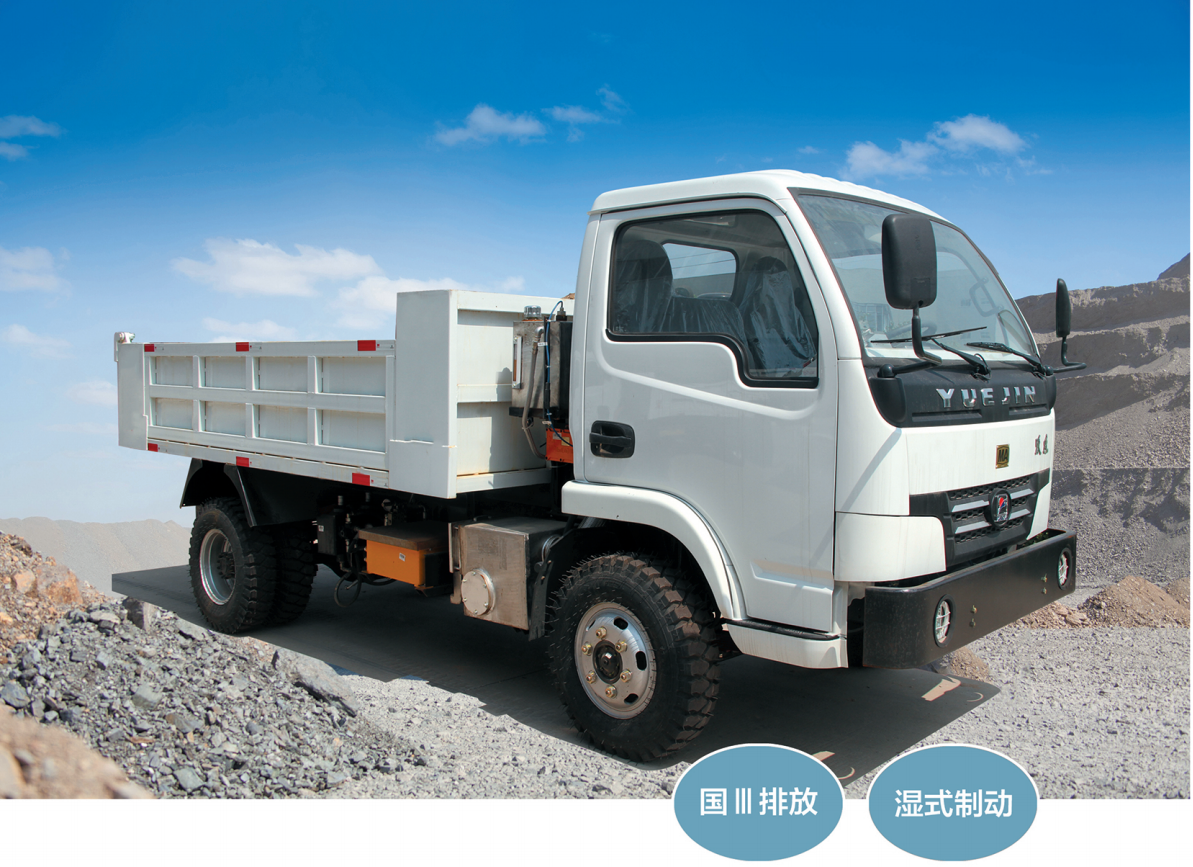

The WC5J(A) is a new-generation trackless transport vehicle engineered by our company to meet the practical demands of medium and small coal mines. It is powered by a ZL4105DZLDFB flameproof diesel engine compliant with China Phase III emission standards, featuring turbocharged intercooling and electronically controlled high-pressure common rail injection. With an output power of 62kW, this mechanically driven, rear-wheel（four-wheel）drive vehicle utilizes a wet brake system for safe and reliable underground transportation.
Uncompromising Safety: The triple-function, fail-safe braking system and built-in automatic protection provide critical safety assurance in demanding mining environments.
Powerful & Reliable Performance: Offers strong power and stable operation, specifically tailored for the challenging conditions of underground mining.
Durable & Long-Lasting: The heavy-duty 510L steel chassis guarantees structural integrity and durability, reducing long-term maintenance needs.
Simplified Layout & Maintenance: The integrated brake system simplifies the overall structure, facilitating easier vehicle arrangement and servicing.
|
Item Main Technical Parameters |
|||
|
Model |
WC5J(A) |
||
|
Curb weight |
4500 |
||
|
Rated Load Capacity (kg) |
5000 |
||
|
Overall Dimensions L×W×H (mm) |
5600×2020×2200 |
||
|
Wheelbase (mm) |
3110 |
||
|
Front Track (mm) |
1700 |
||
|
Rear Track (mm) |
1560 |
||
|
Minimum Ground Clearance (Loaded, mm) |
160 |
||
|
Gradeability (°) |
12 |
||
|
Travel Speed per Gear (km/h) |
1st Gear |
7 |
|
|
|
2nd Gear |
12 |
|
|
|
3rd Gear |
20 |
|
|
|
4th Gear |
32 |
|
|
|
Reverse Gear |
7 |
|
|
Minimum Turning Radius (mm) |
Outside(mm) |
8200 |
|
|
|
Inside (mm) |
5400 |
|
|
Maximum Traction Force (kN) |
22 |
||
|
Transmission Type |
Mechanical Transmission |
||
|
Braking Type |
Service Brake |
Four-wheel braking, hydraulic release, wet disc brakes |
|
|
|
Parking/Emergency Brake |
Wet disc brakes, pressure-loss protection type |
|
|
Drive Type |
Rear（4-wheel ）drive |
||
|
Fuel Tank Capacity(L) |
75 |
||
|
Flameproof Diesel Engine Model |
ZL4105DZLDFB |
||
|
Flameproof Diesel Engine Power (kW) |
62 |
||
|
Flameproof Diesel Engine Rated Speed (r/min) |
2200 |
||
|
Protection Type |
Flameproof electric protection |
||
