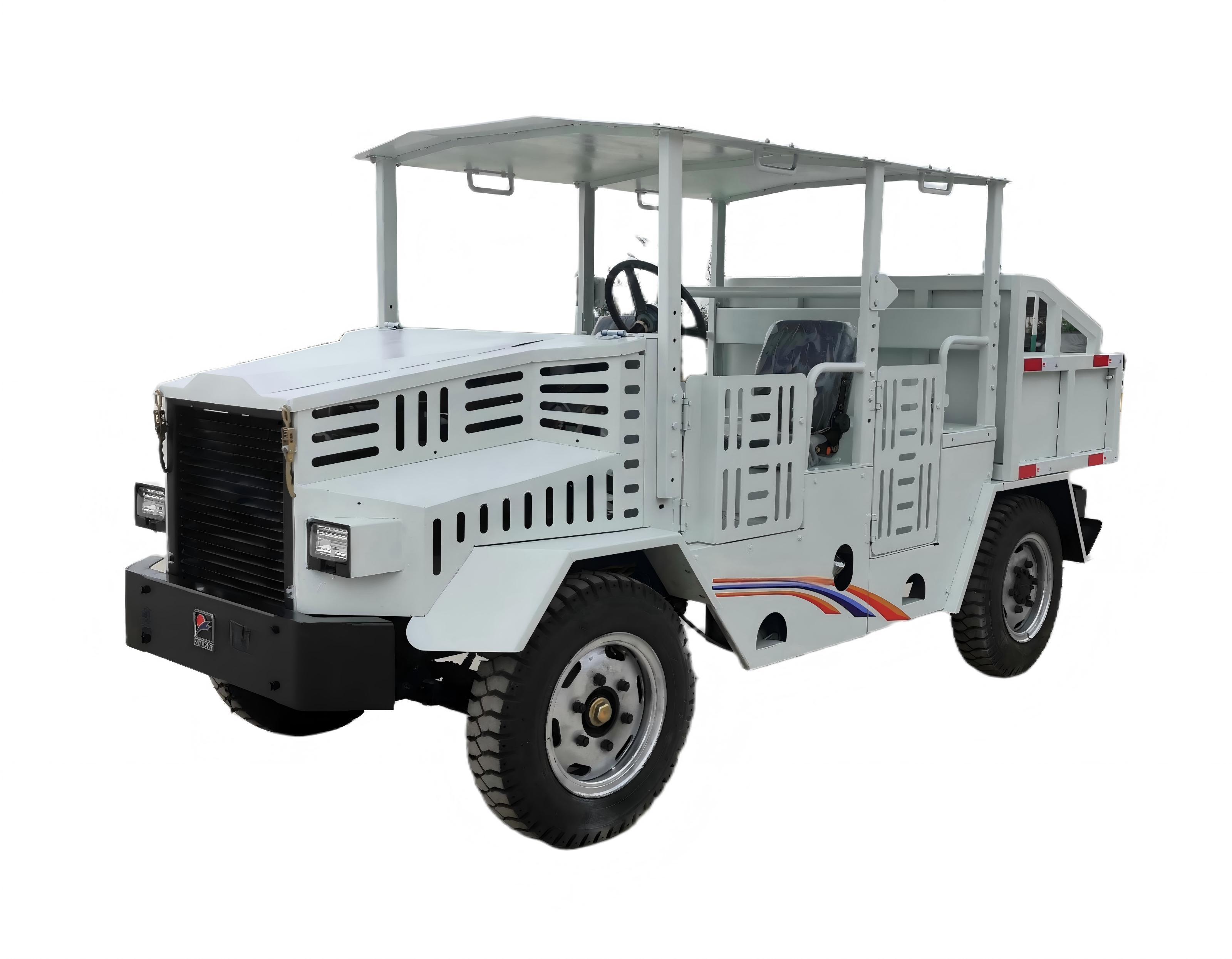

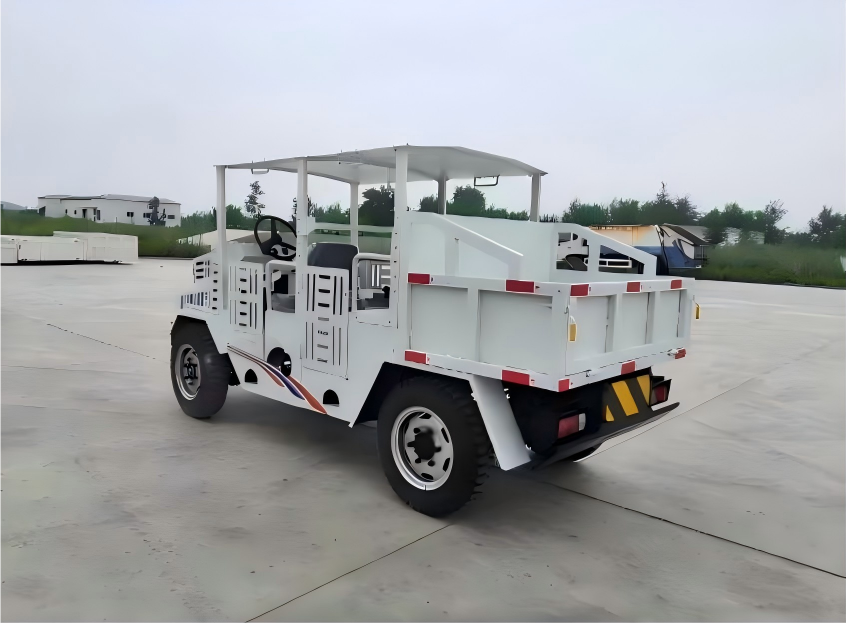

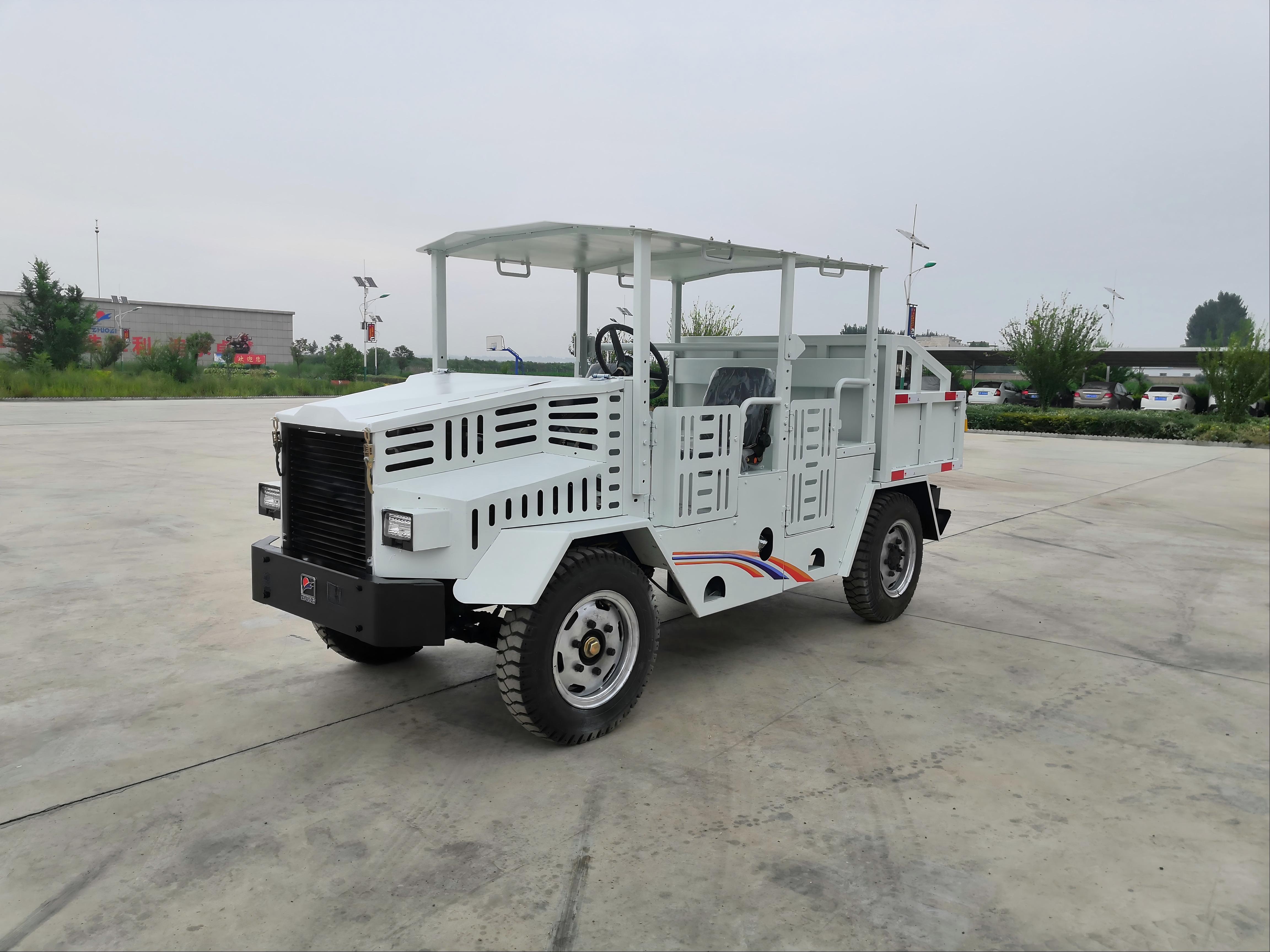

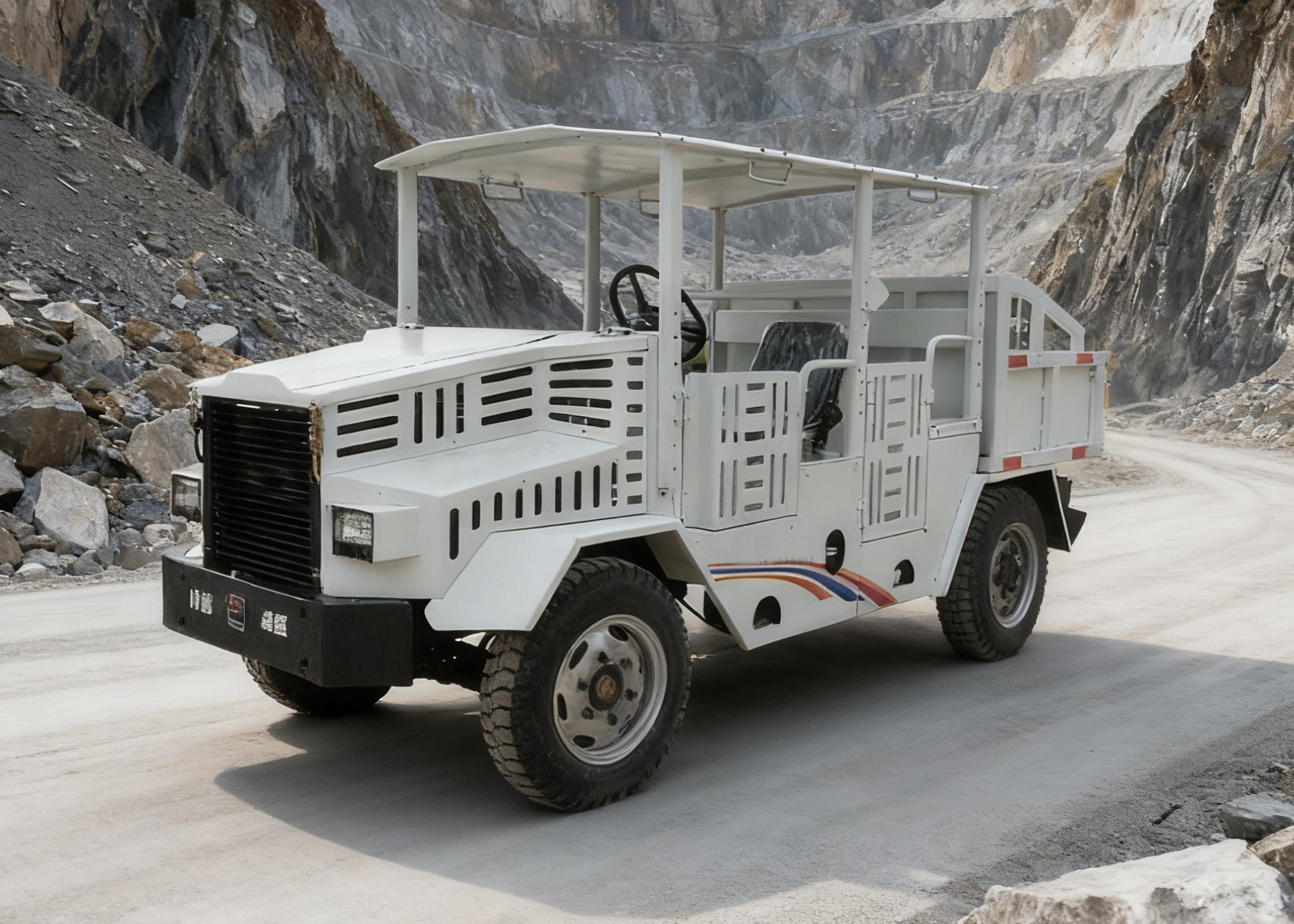

The WC4/0.5J is a new-generation dual-row utility vehicle for personnel and material transport in coal mines, designed to improve underground working conditions.
Powerful Engine:Equipped with our ZL495DZLDFB Phase III flameproof diesel engine (48kW), providing strong power for transport and slope climbing.
Compact Design: Its small size makes it ideal for narrow tunnels and low-clearance roadways.
Reliable Quality:Key components sourced from reputable domestic manufacturers ensure durability.
|
Item Main Technical Parameters |
|||
|
Model |
WC4/0.5J |
||
|
Curb weight |
2810 |
||
|
Rated Load Capacity (kg) |
500 |
||
|
Rated passenger capacity (person) |
4 |
||
|
Overall Dimensions L×W×H (mm) |
4000×1500×1940 |
||
|
Wheelbase (mm) |
2450 |
||
|
Front Track (mm) |
1350 |
||
|
Rear Track (mm) |
1300 |
||
|
Minimum Ground Clearance (Loaded, mm) |
200 |
||
|
Gradeability (°) |
12 |
||
|
Travel Speed per Gear (km/h) |
1st Gear |
4 |
|
|
2nd Gear |
11 |
||
|
3rd Gear |
23 |
||
|
4th Gear |
31 |
||
|
Reverse Gear |
11 |
||
|
Minimum Turning Radius (mm) |
Outside(mm) |
5900 |
|
|
Inside (mm) |
3850 |
||
|
Maximum Traction Force (kN) |
14 |
||
|
Transmission Type |
Mechanical Transmission |
||
|
Braking Type |
Service Brake |
Spring-applied brake, hydraulic release, wet disc brakes |
|
|
Parking Brake/Emergency Brake |
Spring-applied brake, hydraulic release |
||
|
Drive Type |
Rear-wheel drive |
||
|
Fuel Tank Capacity(L) |
36 |
||
|
Flameproof Diesel Engine Model |
ZL495DZLDFB |
||
|
Flameproof Diesel Engine Power (kW) |
48 |
||
|
Flameproof Diesel Engine Rated Speed (r/min) |
2600 |
||
|
Protection Type |
Flameproof electric protection |
||
|
Approach Angle (°) |
30 |
||
|
Departure Angle (°) |
26 |
||
|
Rear Overhang (mm) |
840 |
||
