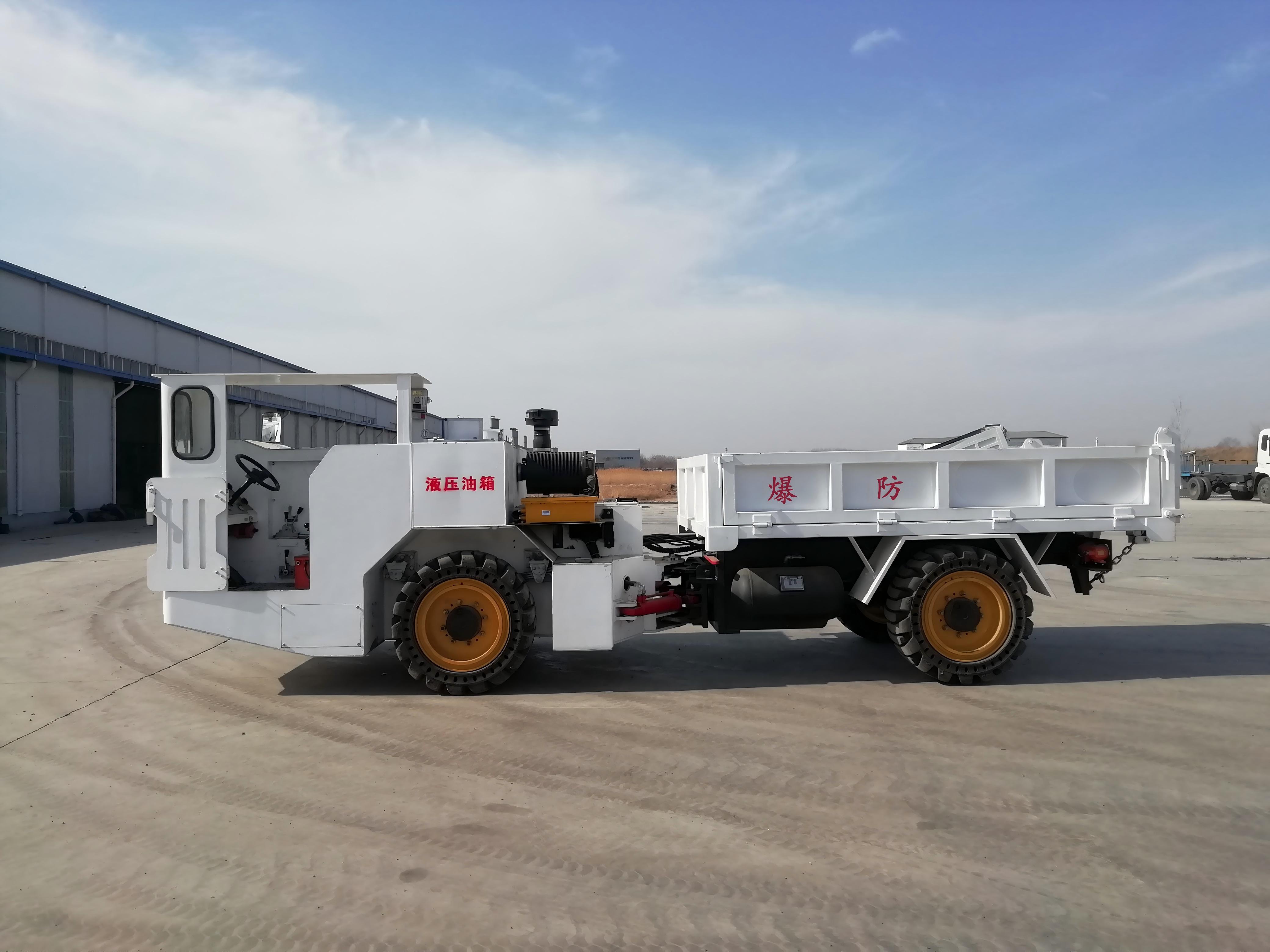

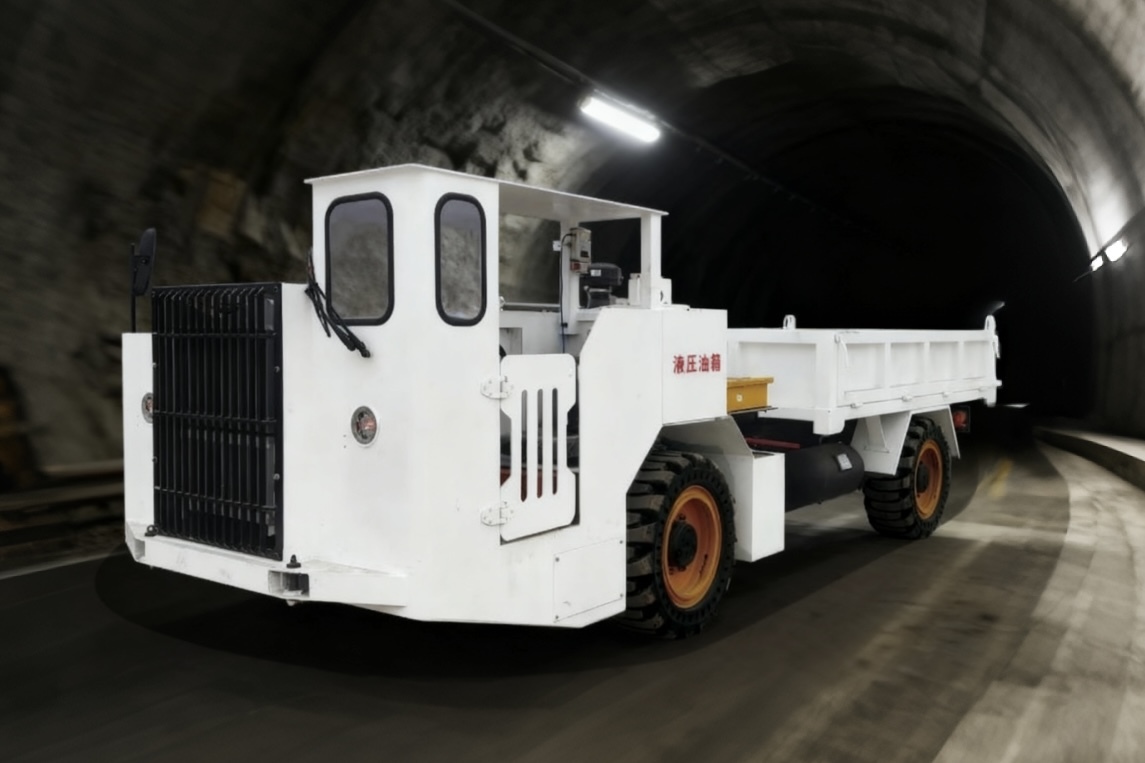

The WCJ5E(A) is a compact and narrow flameproof transport vehicle, with a minimum height of 1.92m and width of 2m. Its low profile makes it ideally suited for material and medium/small equipment transport in low-clearance roadways within coal mines. The integrated dump function is particularly effective for handling rock and bulk materials.
Maneuverable Design: Features a small turning radius and excellent dumping performance, optimized for underground operation.
Reliable Power: Powered by our independently developed ZL6105DZLDFB flameproof, low-emission diesel engine, ensuring reliable explosion-proof performance, strong power, and minimal pollution.
Robust Chassis: Utilizes a welded front/rear frame with a central articulation joint, hydraulic double-cylinder steering, and leaf spring suspension for durability in tough conditions.
All-Terrain Capability: 4x4 all-wheel drive provides superior traction on poor roadway surfaces.
Effective Braking: Service braking is oil-supplied braking; emergency braking is spring-applied, hydraulically released.
|
Item Main Technical Parameters |
|||
|
Model |
WCJ5E(A) |
||
|
Curb weight |
7600 |
||
|
Rated Load Capacity (kg) |
5000 |
||
|
Overall Dimensions L×W×H (mm) |
6930×2000×1920 |
||
|
Wheelbase (mm) |
3310 |
||
|
Front Track (mm) |
1580 |
||
|
Rear Track (mm) |
1580 |
||
|
Minimum Ground Clearance (Loaded, mm) |
280 |
||
|
Gradeability (°) |
14 |
||
|
Travel Speed per Gear (km/h) |
1st Gear |
7 |
|
|
2nd Gear |
17 |
||
|
3rd Gear |
28 |
||
|
1st Reverse Gear |
7 |
||
|
2nd Reverse Gear |
17 |
||
|
3rd Reverse Gear |
28 |
||
|
Minimum Turning Radius (mm) |
Outside(mm) |
5830 |
|
|
Inside (mm) |
3550 |
||
|
Maximum Dump Angle (°） |
45 |
||
|
Maximum Dump Height |
3300 |
||
|
Braking Type |
Service Brake |
Four-wheel braking, hydraulic release, wet disc brakes |
|
|
Parking Brake |
Four-wheel braking, hydraulic release, wet disc brakes, fail-safe |
||
|
Emergency Brake |
Central braking, wet disc brakes, fail-safe |
||
|
Drive Type |
4×4 drive |
||
|
Fuel Tank Capacity(L) |
120 |
||
|
Flameproof Diesel Engine Model |
ZL6105DZLDFB |
||
|
Flameproof Diesel Engine Power (kW) |
73 |
||
|
Flameproof Diesel Engine Rated Speed (r/min) |
2300 |
||
|
Protection Type |
Flameproof electric protection |
||
