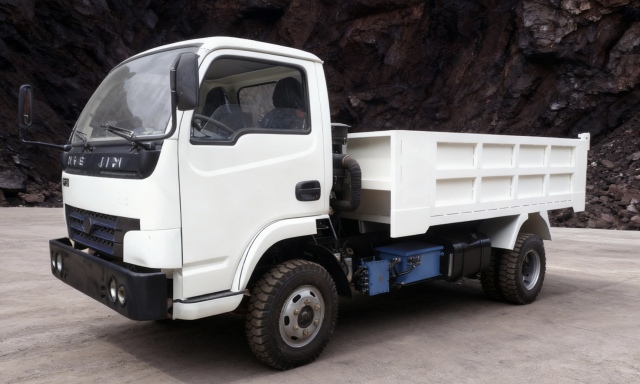

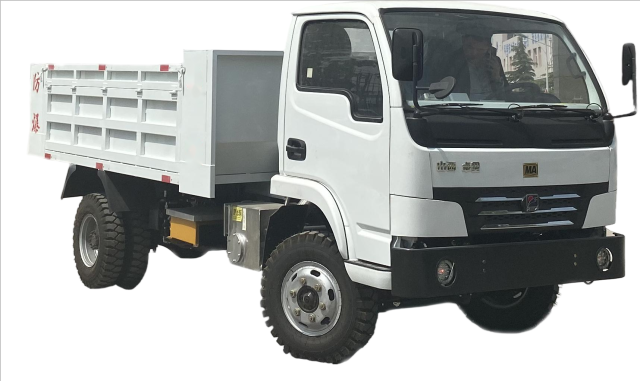

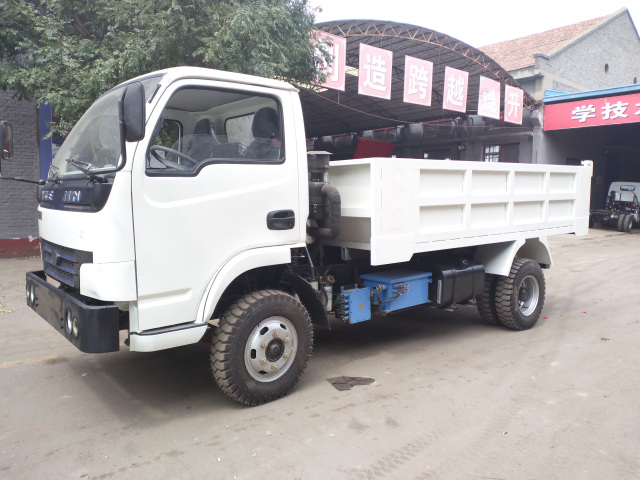

The WC8J is an advanced trackless transport vehicle engineered for medium and small coal mines.It is powered by a high-power ZL6105DZLDFB flameproof diesel engine delivering 73kW (after flameproof treatment). The engine complies with China Phase III emission standards and features turbocharged intercooling and electronically controlled high-pressure common rail injection. This mechanically driven, rear-wheel-drive vehicle utilizes a wet brake system for safe and reliable underground transportation.
Maximum Safety Assurance: The triple-function, fail-safe braking system ensures critical protection for personnel and equipment in all operating conditions.
Powerful & Stable Performance: Delivers strong, consistent power tailored for challenging underground transport and steep gradients.
Exceptional Durability: The high-strength chassis and premium components ensure extended service life and minimal maintenance, providing outstanding long-term value.
Proven Quality: Key components sourced from renowned domestic manufacturers ensure reliable product quality and performance.
|
Item Main Technical Parameters |
|||
|
Model |
WC8J |
||
|
Curb weight |
5100 |
||
|
Rated Load Capacity (kg) |
8000 |
||
|
Overall Dimensions L×W×H (mm) |
5890×2020×2230 |
||
|
Wheelbase (mm) |
3300 |
||
|
Front Track (mm) |
1700 |
||
|
Rear Track (mm) |
1570 |
||
|
Minimum Ground Clearance (Loaded, mm) |
160 |
||
|
Gradeability (°) |
14 |
||
|
Travel Speed per Gear (km/h)
|
1st Gear |
4 |
|
|
2nd Gear |
6 |
||
|
3rd Gear |
10 |
||
|
4th Gear |
16 |
||
|
5th Gear |
22 |
||
|
6th Gear |
33 |
||
|
Reverse Gear |
4 |
||
|
Minimum Turning Radius (mm) |
Outside(mm) |
8900 |
|
|
Inside (mm) |
5900 |
||
|
Maximum Traction Force (kN) |
30 |
||
|
Transmission Type |
Mechanical Transmission |
||
|
Braking Type |
Service Brake |
Four-wheel braking, hydraulic release, wet disc brakes |
|
|
Parking/Emergency Brake |
Wet disc brakes, pressure-loss protection type |
||
|
Drive Type |
Rear wheel drive |
||
|
Fuel Tank Capacity(L) |
125 |
||
|
Flameproof Diesel Engine Model |
ZL6105DZLDFB |
||
|
Flameproof Diesel Engine Power (kW) |
73 |
||
|
Flameproof Diesel Engine Rated Speed (r/min) |
2200 |
||
|
Protection Type |
Flameproof electric protection |
||
