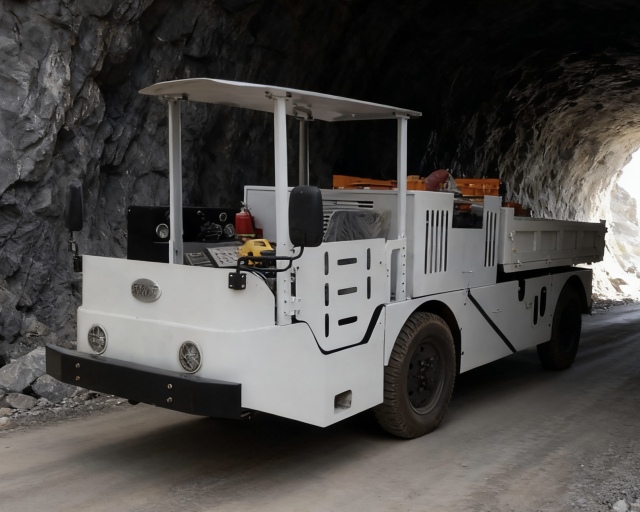

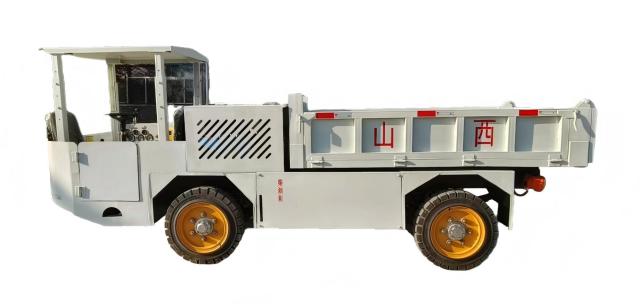

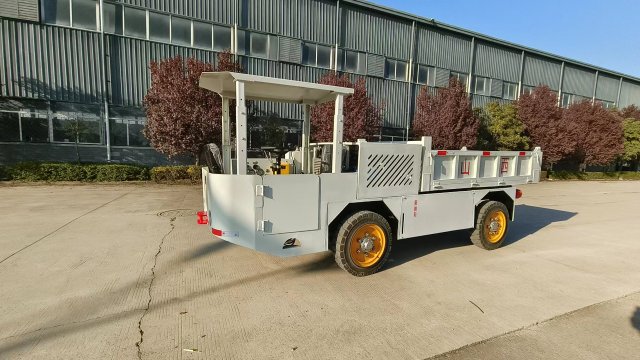

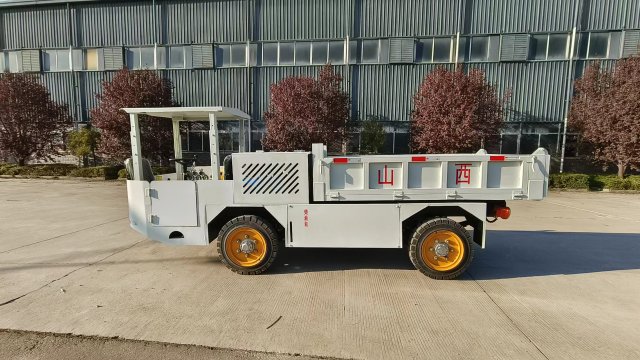

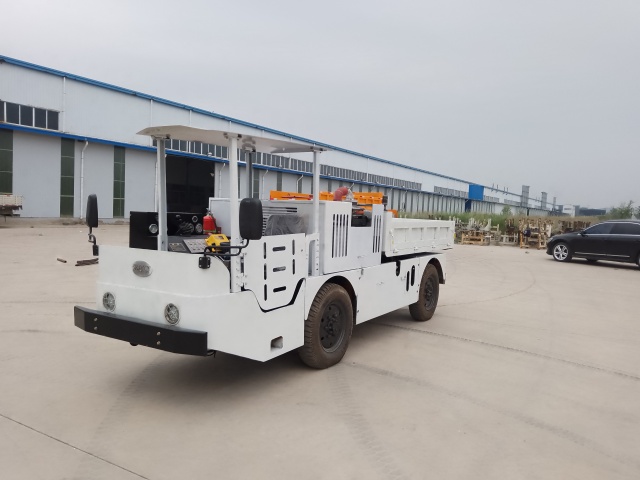

The WC1.9E is a 2 ton utility dump truck designed for versatile underground transport in small to medium mining operations. Powered by a 48kW ZL495DZLDFB flameproof diesel engine with electronic common rail injection, this compact mining vehicle delivers reliable performance in confined spaces. Its 4x4 drive configuration ensures traction on challenging underground terrain, while the wet brake system provides consistent stopping power in all conditions. Built with a 510L high-strength steel frame, the WC1.9E offers exceptional durability for long-term operation.
All-Terrain Capability: Four-wheel drive and hydrostatic transmission provide excellent traction and control on challenging underground terrain.
Comprehensive Safety: The multi-function wet brake system ensures safe operation, with automatic spring-applied braking for emergency and parking situations.
Regulatory Compliance: Meets GB20891-2014 emission standards and MT990-2006 flameproof specifications.
Durable Construction: Chassis built from high-strength 510L carbon steel profiles for enhanced durability and longevity.
|
Item Main Technical Parameters |
||||
|
Model |
WC1.9E |
|||
|
Curb weight |
3800 |
|||
|
Rated Load Capacity (kg) |
1900 |
|||
|
Overall Dimensions L×W×H (mm) |
4780x1350x1870 |
|||
|
Wheelbase (mm) |
2440 |
|||
|
Front Track (mm) |
1170 |
|||
|
Rear Track (mm) |
1170 |
|||
|
Minimum Ground Clearance (Loaded, mm) |
180 |
|||
|
Gradeability (°) |
14 |
|||
|
Rear Overhang (mm) |
870 |
|||
|
Travel Speed per Gear (km/h) |
High gear |
Foward Gear |
9 |
|
|
|
|
Reverse Gear |
9 |
|
|
|
Low gear |
Foward Gear |
16 |
|
|
|
|
Reverse Gear |
16 |
|
|
Minimum Turning Radius (mm) |
Inside (mm) |
4600 |
||
|
|
Outside(mm) |
7200 |
||
|
Maximum Traction Force (kN) |
≥12 |
|||
|
Transmission Type |
Hydraulic Transmission |
|||
|
Braking Type |
Service Brake |
Four-wheel braking, hydraulic release, spring-applied brake, wet disc brakes |
||
|
|
Parking/Emergency Brake |
Rear-wheel braking, hydraulic release, spring applied brake, wet disc brakes |
||
|
Drive Type |
4-wheel drive |
|||
|
Flameproof Diesel Engine Model |
ZL495DZLDFB |
|||
|
Flameproof Diesel Engine Power (kW) |
48 |
|||
|
Flameproof Diesel Engine Rated Speed (r/min) |
2600 |
|||
|
Protection Type |
Flameproof electric protection |
|||
