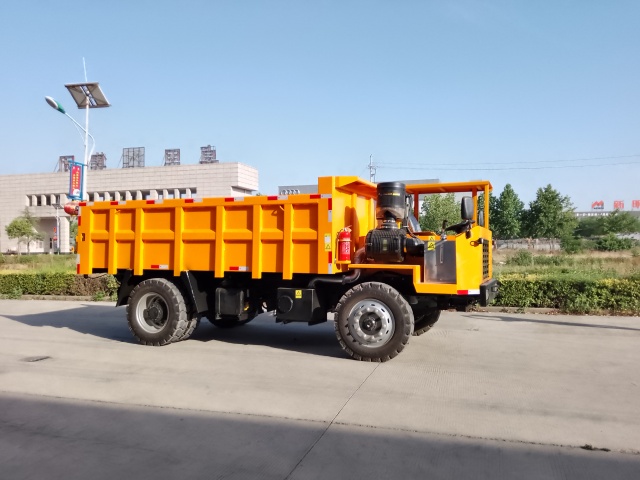

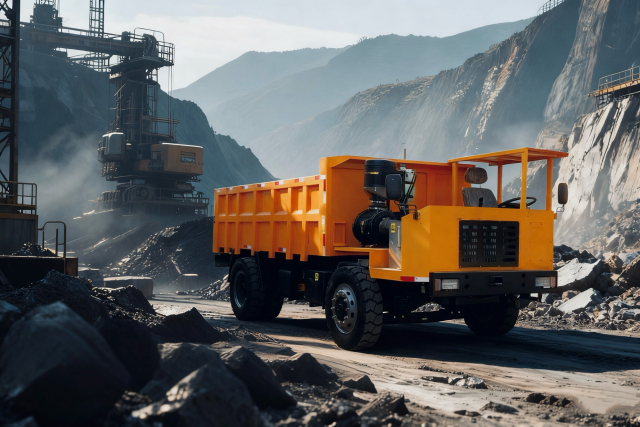

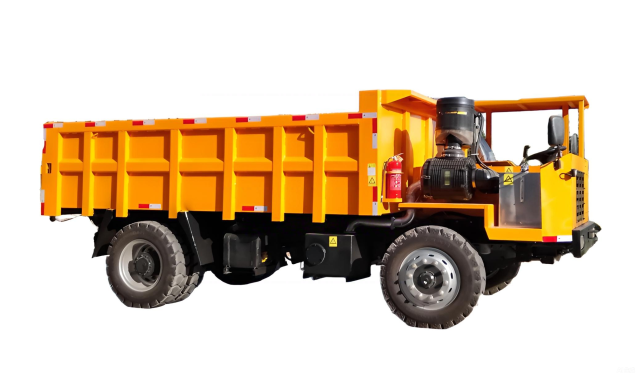

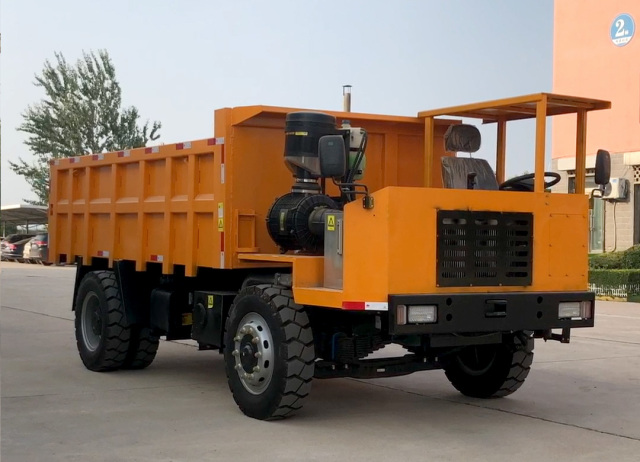

This is our new-generation dump truck, powered by a CA6DF3-22GG3U diesel engine from FAW Jiefang Wuxi Diesel Engine Works, compliant with China Phase III emission standards. It is designed for safe and reliable transport in coal mines, offering excellent operability.
Powerful Performance: Leading domestic performance with a 162kW output, providing strong power for slope climbing and operation in harsh environments.
Compact & Robust: Reliable and durable structure, ideal for narrow tunnels and low-clearance roadways.
Advanced Braking Safety: Hydraulic dual-circuit (integrated service/parking) wet brake system. Brakes engage automatically upon pressure loss, ensuring safety.
Assured Quality: Key components sourced from renowned domestic manufacturers.
|
Item Main Technical Parameters |
|||
|
Rated Load Capacity (kg) |
16000 |
||
|
Maximum Traction Force (kN) |
135 |
||
|
Maximum Machine Height (when dumping)(mm) |
4500 |
||
|
Minimum Ground Clearance(mm) |
250 |
||
|
Minimum Turning Radius (mm) |
Inside:3800 / Outside: 7100 |
||
|
Gradeability(°) |
14 |
||
|
Dumping Angle (°) |
45±2 |
||
|
Loading Box Lifting Time (s) |
25 |
||
|
Loading Box Lowering Time (s) |
15 |
||
|
Maximum Speed (km/h) |
Low Gear |
1st Gear |
3.9±0.4 |
|
2nd Gear |
5.9±0.6 |
||
|
3rd Gear |
8.1±0.8 |
||
|
4th Gear |
10.9±1.1 |
||
|
Reverse Gear |
3.8±0.4 |
||
|
High Gear |
1st Gear |
16.2±1.6 |
|
|
2nd Gear |
24.2±2.4 |
||
|
3rd Gear |
33.1±3.3 |
||
|
4th Gear |
44.3±4.4 |
||
|
Reverse Gear |
15.5±1.6 |
||
|
Overall Dimensions in Transport Condition |
Length (mm) |
5950±179 |
|
|
Width(mm) |
2400±72 |
||
|
Height (mm) |
2300±69 |
||
|
Curb Weight (kg) |
9000±450 |
||
|
Wheelbase(mm) |
3200±64 |
||
|
Wheel Track (Front/Rear) (mm) |
Front 1955±50 / Rear 1750±53 |
||
|
Starting Method |
Electric Start |
||
|
Transmission Type |
Mechanical Transmission |
||
|
Fuel Tank Capacity(L) |
180 |
||
|
Braking Type |
Service Brake |
Four-wheel braking, hydraulic brake, wet disc brakes |
|
|
Parking/Emergency Brake |
Four-wheel braking, spring-applied brake, hydraulic release, wet disc brakes |
||
|
Drive Type |
Rear-wheel drive |
||
|
Steering Type |
Hydraulic power steering |
||
|
Hopper Tilting Type |
Rear dump |
||
|
Diesel Engine |
Model |
CA6DF3-22GG3U |
|
|
Rated Power (kw) |
162 |
||
|
Rated Speed(r/min) |
2000 |
||
