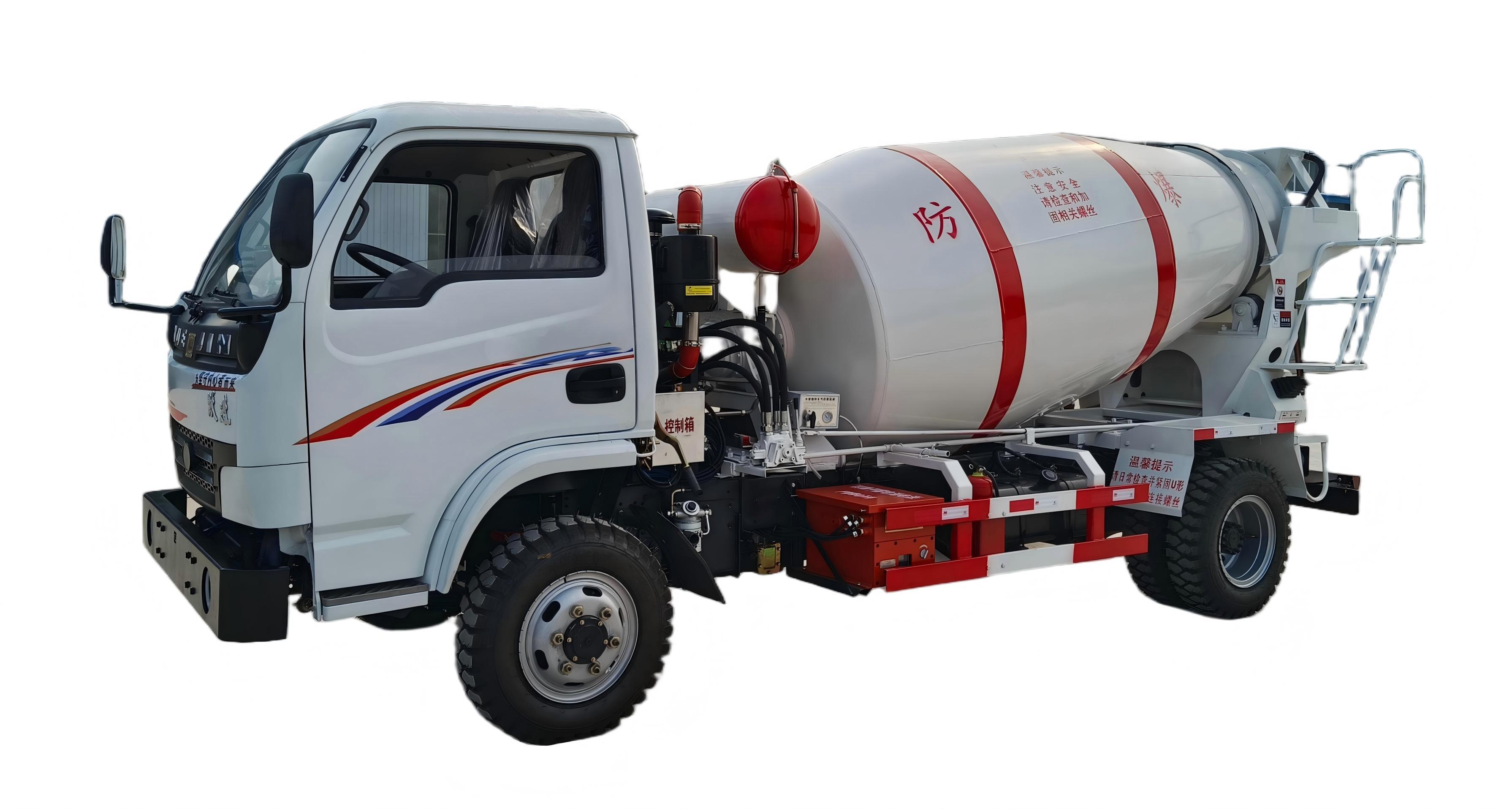

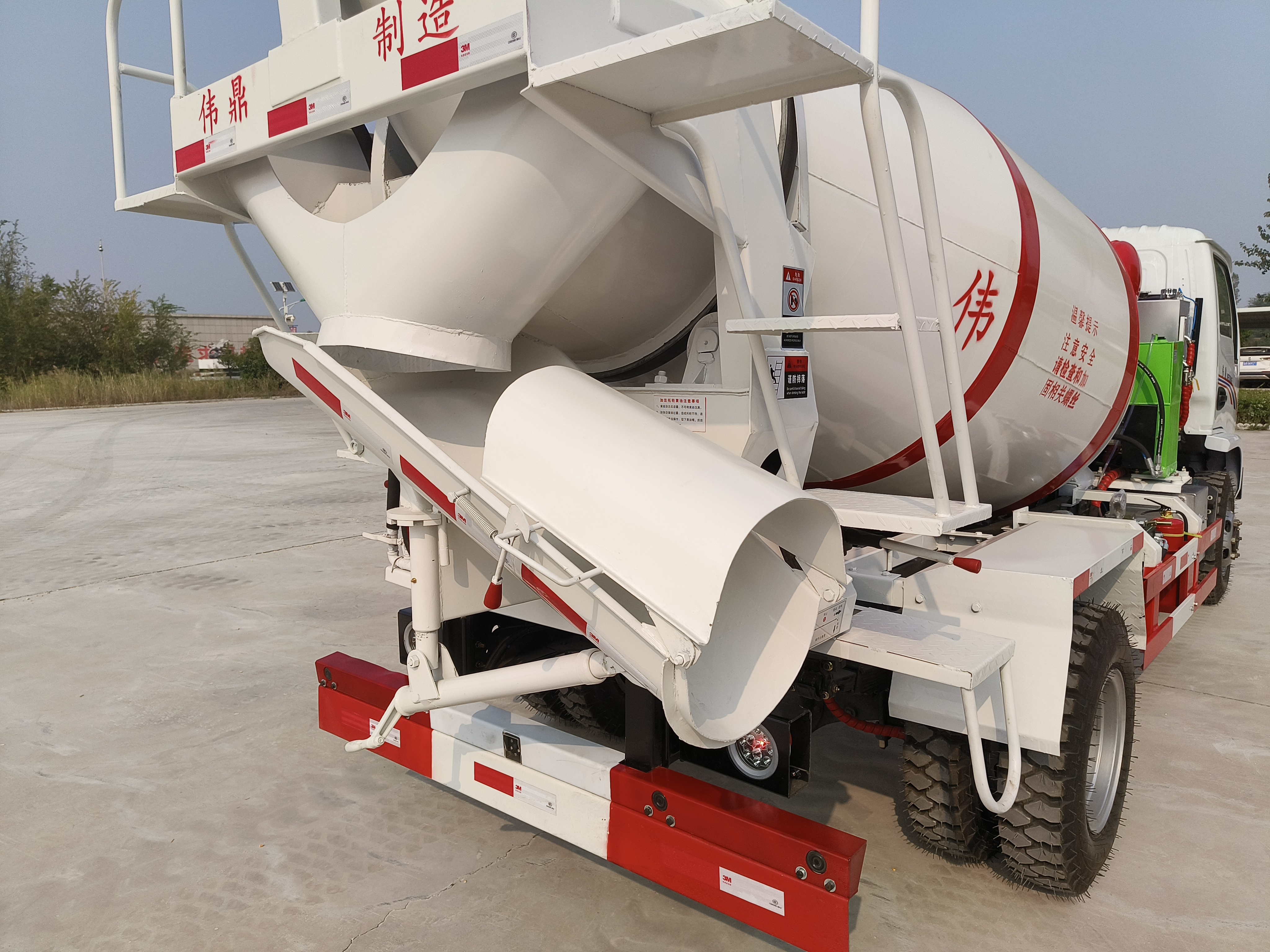

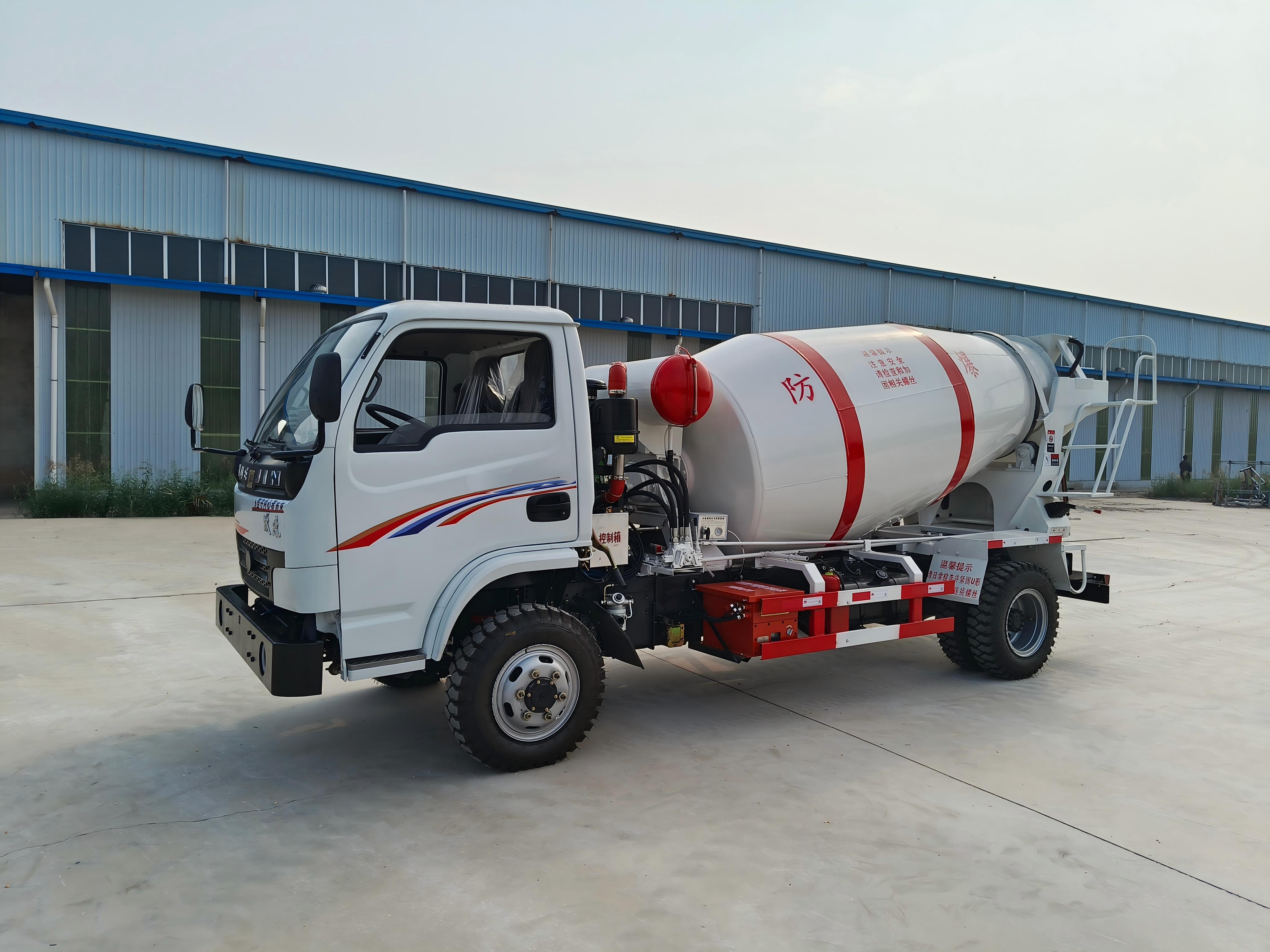

The JC3 is a specialized concrete mixer truck developed found mine opr undergroerations, such as road paving and surface hardening in low-clearance tunnels.
Efficient Mixing: Large drum capacity enables fast loading/discharging, uniform mixing, low residue, and stable performance.
Reliable Braking & Steering: Full hydraulic wet brakes ensure safe, stable stopping. Hydraulic power steering offers light and flexible control.
Durable Hydraulic System: Renowned mixing hydraulic system and reducer ensure smooth operation, low noise, and long service life.
|
Item Main Technical Parameters |
|||||
|
Model |
JC3 |
||||
|
Curb weight |
5110 |
||||
|
Rated volume (m3) |
3 |
||||
|
Overall Dimensions L×W×H (mm) |
6400×1850×2300 |
||||
|
Wheelbase (mm) |
3600 |
||||
|
Front Track (mm) |
1555 |
||||
|
Rear Track (mm) |
1530 |
||||
|
Minimum Ground Clearance (Loaded, mm) |
200 |
||||
|
Gradeability (°) |
12 |
||||
|
Travel Speed per Gear (km/h) |
1st Gear |
5 |
|||
|
2nd Gear |
10 |
||||
|
3rd Gear |
15 |
||||
|
4th Gear |
20 |
||||
|
Reverse Gear |
6.9 |
||||
|
Minimum Turning Radius (mm) |
Outside(mm) |
7100 |
|||
|
Inside (mm) |
4100 |
||||
|
Maximum Traction Force (kN) |
25 |
||||
|
Transmission Type |
Mechanical Transmission |
||||
|
Braking Type |
Service Brake |
Four-wheel braking, hydraulic release, spring-applied brake, wet disc brakes |
|||
|
Parking Brake/Emergency Brake |
Four-wheel braking, hydraulic release, spring-applied brake, wet disc brakes |
||||
|
Drive Type |
Rear-wheel drive |
||||
|
Fuel Tank Capacity(L) |
85 |
||||
|
Flameproof Diesel Engine Model |
ZL4105DZLDFB |
||||
|
Flameproof Diesel Engine Power (kW) |
62 |
||||
|
Flameproof Diesel Engine Rated Speed (r/min) |
2200 |
||||
|
Protection Type |
Electric protection |
||||
|
Approach Angle (°) |
29 |
||||
|
Departure Angle (°) |
23 |
||||
|
Rear Overhang (mm) |
1850 |
||||
|
Axle Load |
Unladen (kg) |
Front Axle |
2440 |
||
|
Rear Axle |
2670 |
||||
|
Fully Laden (kg) |
Front Axle |
4980 |
|||
|
Rear Axle |
7480 |
||||
|
Mixing Drum Drive Type |
Hydraulic Drive |
||||
|
Mixing Drum Material |
Tank Material:Q345A, Lining Plate Made of High-Strength Fine-Grained Alloy Steel |
||||
|
Mixing Drum Dimensions(mm) |
Tapered Type |
||||
|
Mixing Drum Tilt Angle |
5° |
||||
|
Mixing Drum Effective Volume(m³) |
3 |
||||
|
Mixing Drum Rotation Speed(r/min) |
4 |
||||
|
Feeding Rate(m³/min) |
2.7 |
||||
|
Discharge Rate(m³/min) |
0.35 |
||||
|
Discharge Residue Rate(% |
3 |
||||
