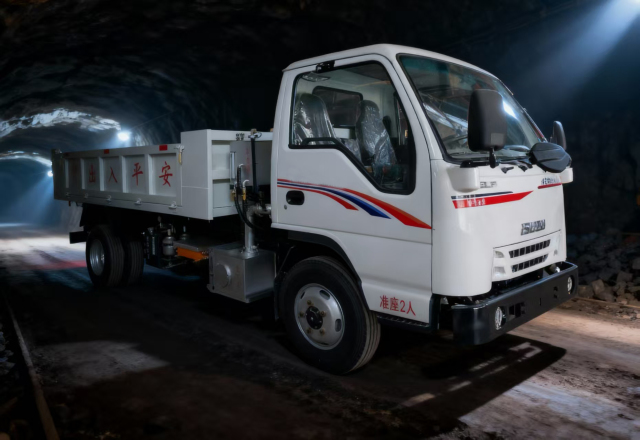

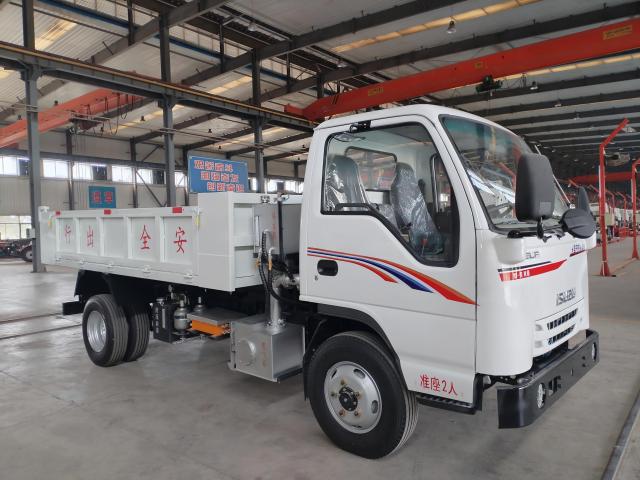

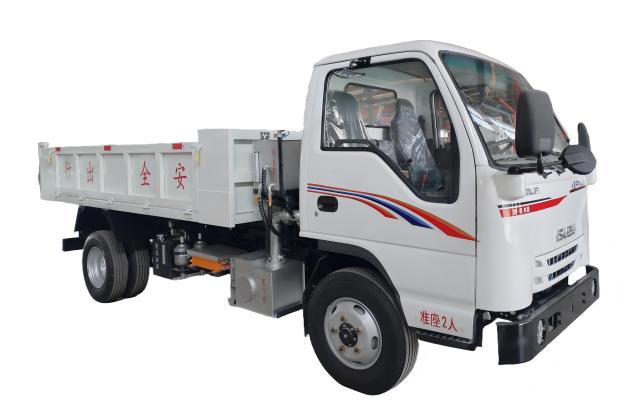

The WC5E(A) is a 5 ton mining dump truck engineered for efficient ore and material transport in underground operations. This flameproof vehicle combines a powerful diesel engine with robust construction to handle demanding mining conditions. Its optimized payload capacity balances productivity with maneuverability, making it ideal for small to medium mines requiring reliable daily haulage. The durable 510L steel frame ensures long service life, while the comprehensive flameproof protection system meets international safety standards for operation in potentially explosive atmospheres. Maximum Operational Safety: Triple braking system and integrated protection devices ensure fail-safe operation in hazardous environments Powerful & Reliable Performance:62kW engine combined with 4WD delivers strong traction for demanding underground conditions Complete Hazard Prevention:Multiple protection systems and certified electrical components eliminate potential ignition sources Adaptable to Harsh Conditions:Designed for reliable performance in extreme temperatures and high humidity environments
Item Main Technical Parameters | |||
Model | WC5E | ||
Curb weight | 5360 | ||
Rated Load Capacity (kg) | 5000 | ||
Overall Dimensions L×W×H (mm) | 5850×2000×2240 | ||
Wheelbase (mm) | 3180 | ||
Front Track (mm) | 1670 | ||
Rear Track (mm) | 1610 | ||
Minimum Ground Clearance (Loaded, mm) | 160 | ||
Gradeability (°) | 12 | ||
Travel Speed per Gear (km/h) | 1st Gear | 5.6 | |
| 2nd Gear | 15.8 | |
| 1st Reverse Gear | 5.5 | |
| 2nd Reverse Gear | 15.4 | |
Minimum Turning Radius (mm) | Outside(mm) | 8900 | |
| Inside (mm) | 5780 | |
Maximum Traction Force (kN) | 22 | ||
Transmission Type | Hydraulic transmission | ||
Braking Type | Service Brake | Four-wheel braking, hydraulic release, wet disc brakes | |
| Parking Brake | Four-wheel braking, hydraulic release, wet disc brakes, pressure-loss protection type | |
| Emergency Brake | Central braking, wet brake, pressure-loss protection type | |
Drive Type | Four-wheel drive | ||
Fuel Tank Capacity(L) | 100 | ||
Flameproof Diesel Engine Model | ZL4105DZLDFB | ||
Flameproof Diesel Engine Power (kW) | 62 | ||
Flameproof Diesel Engine Rated Speed (r/min) | 2200 | ||
Protection type | Flameproof electric protection | ||
