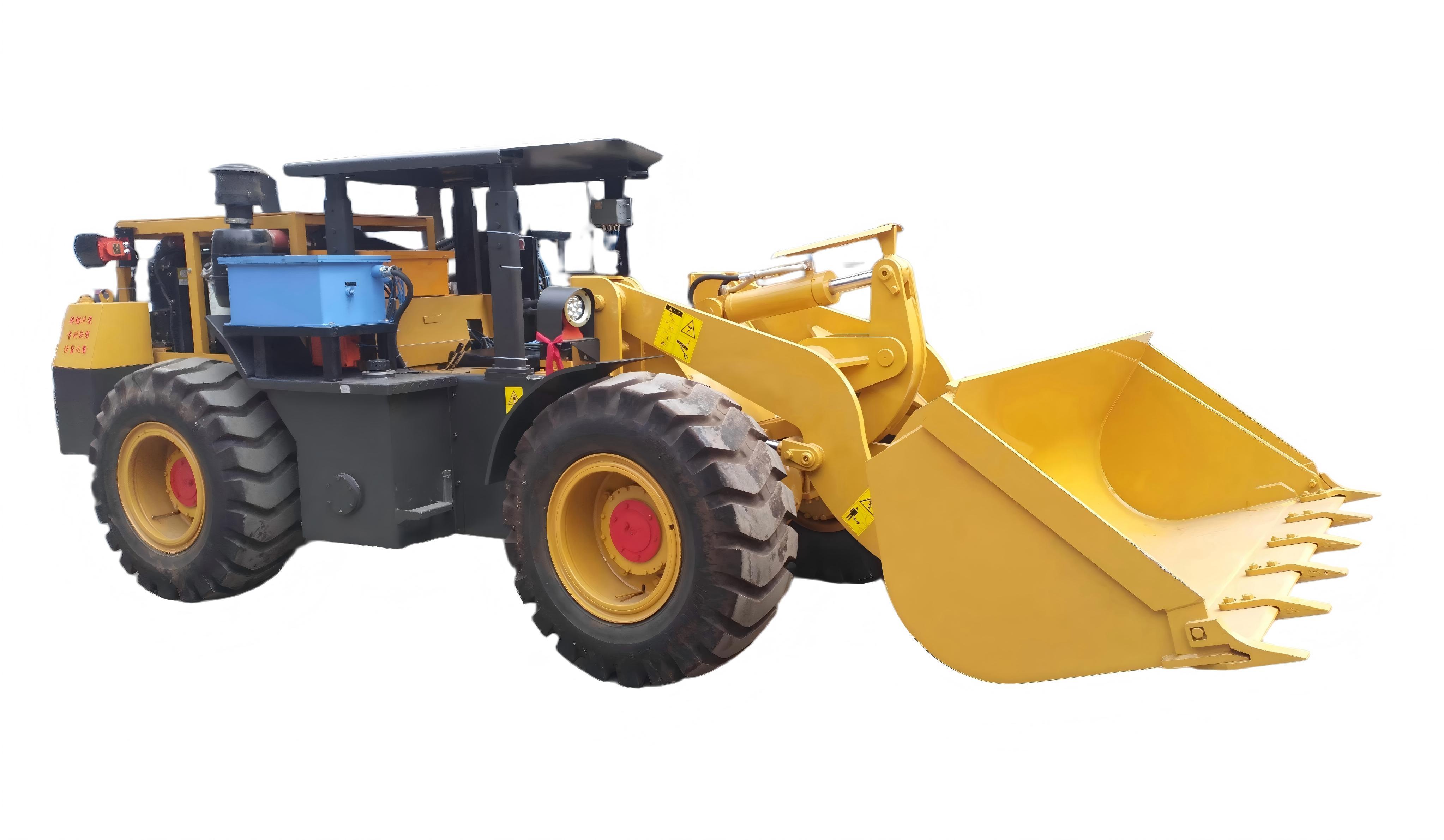

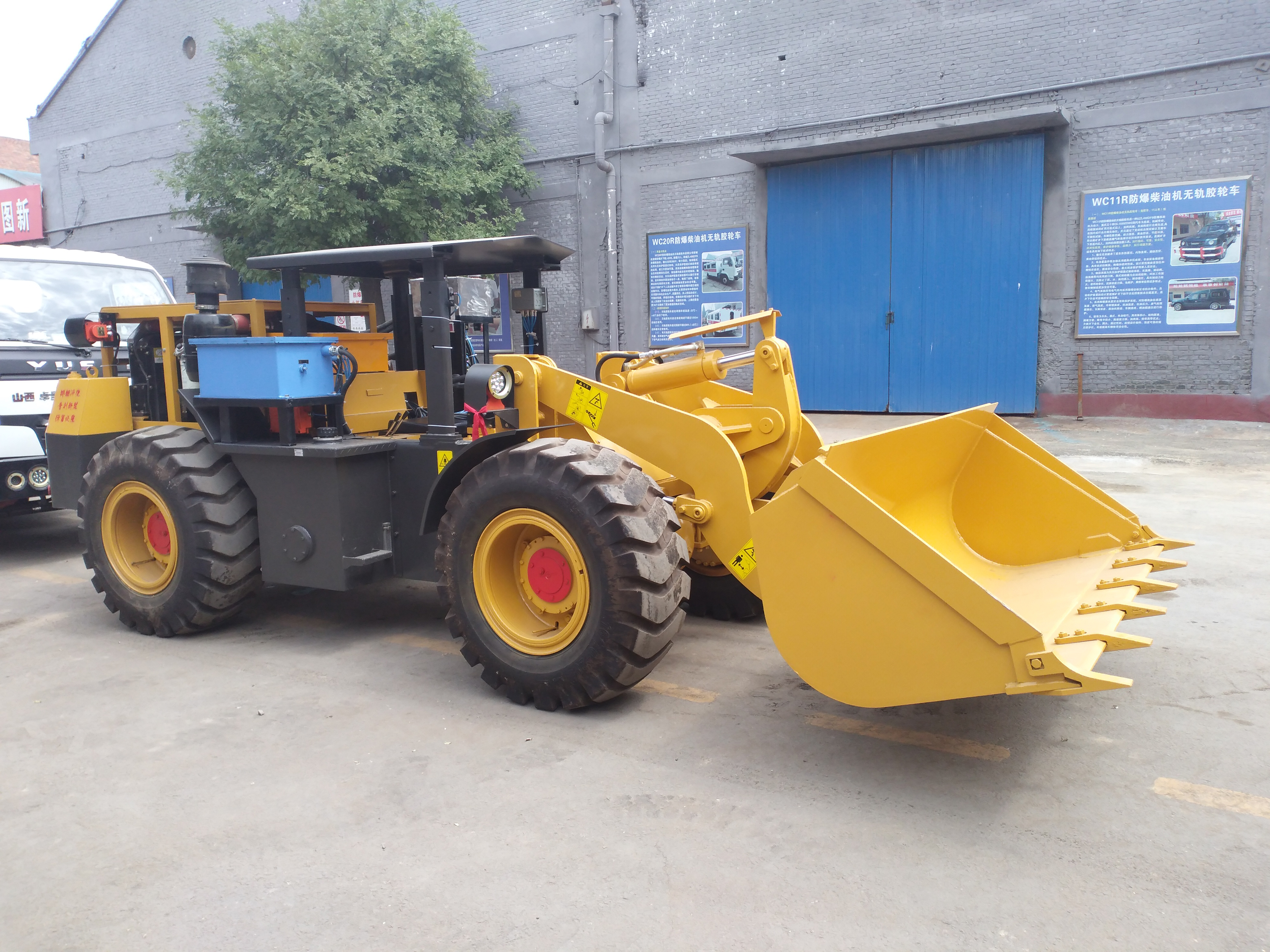

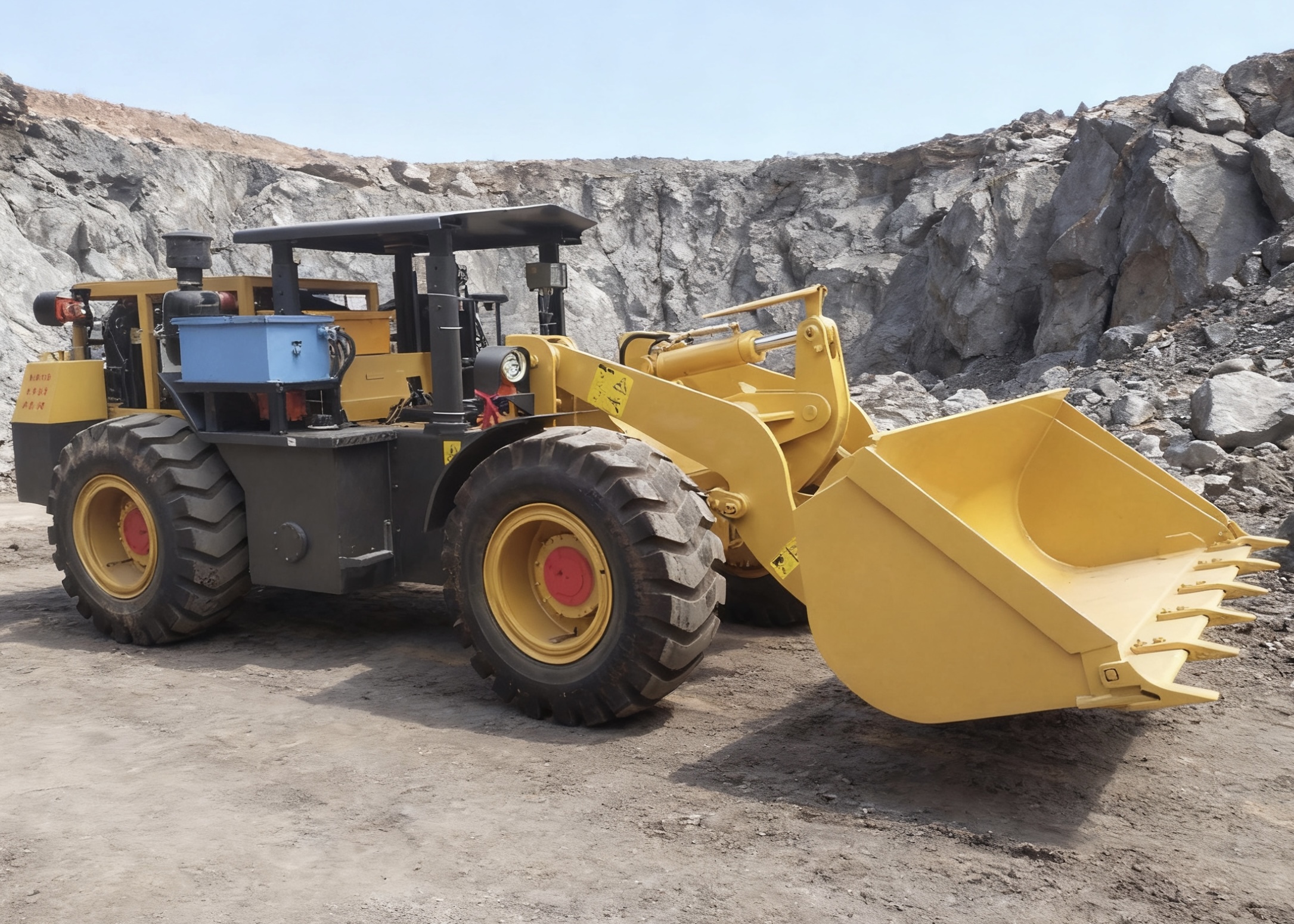

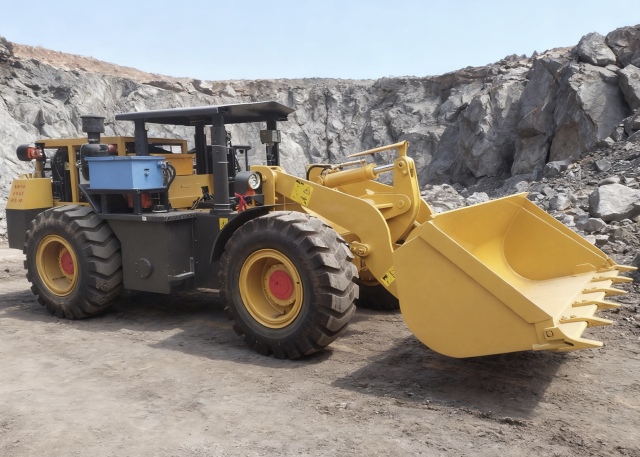

2-ton flameproof loader ZL20EFB(A) for narrow drifts is engineered for compact underground mining operations where space is limited but performance cannot be compromised. It is our new-generation model, powered by a ZL4105DZLDFB Phase III flameproof diesel engine (62kW). Based on a Zhengtai loader chassis, it features hydrostatic transmission, all-hydraulic wet brakes, and front/rear wheel drive. It offers high lift height and large bucket capacity for efficient loading of loose materials and short-distance transport in coal mines and other explosive environments.This versatile utility vehicle delivers reliable loading power in narrow drifts and confined spaces.

Advanced Cooling & Safety: Dual-layer forced water-cooling for intake/exhaust, water-scrubbed exhaust treatment box, and flameproof electric start ensure comprehensive automatic protection.
Reliable All-Hydraulic Wet Brakes: Fully enclosed system prevents mud, water, and oil ingress, providing stable, high-torque braking unaffected by harsh conditions.
High Traction & Maneuverability: Hydrostatic transmission delivers high torque and traction. The articulated frame ensures a small turning radius for excellent mobility.
Efficient Hydraulic Systems: Full hydraulic load-sensing steering for smooth operation and reduced power loss. Hydraulically controlled transmission and implements enable light and responsive operation.
All-Terrain Capability: 4-wheel drive combined with wide-base low-pressure tires provides strong climbing ability and improved performance on marshland or soft ground.

Whether loading ore at the mining face, stockpiling materials, or performing general utility work, the ZL20EFB(A) combines certified flameproof safety, compact maneuverability, and reliable power—making it the ideal choice for small to medium mines requiring a versatile underground loader.

GET A QUOTE

Description

Item Main Technical Parameters
Loader Model		ZL20EFB(A)
Bucket Capacity(m³)		1
Rated Load Capacity(kg)		2000
Curb Weight(kg)		6200
Overall Dimensions(L×W×H) (mm)		560020302000
Wheelbase(mm)		2450
Track(mm)		1430
Minimum Dump Reach(mm)		1000
Maximum Dump Height(mm)		1650
Minimum Ground Clearance(mm)		310
Bucket Width(mm)		2030
Minimum Turning Radius(mm)		Inside 3400/Outside 5200
Transmission Type		Hydraulic Transmission
Drive Type		Fourth-wheel drive
Maximum Breakout Force(kN)		55
Maximum Traction Force(kN)		40
Tip Load(kg)		4000
Gradeability (°)		14
Operating Speed (km/h)		Forward	1-gear	0-6
			2-gear	0-24
		Back	1-gear	0-6
			2-gear	0-24
Total Bucket Lift, tilt and lowering cycle time (s)		≤10.0
Maximum Lift Height(mm)		3050
Maximum Steering Angle(°)		35
Braking Type	Service Brake	Air-over-hydraulic wet brake
	Parking Brake / Emergency Brake	Flexible cable operated disc type
Flameproof Diesel Engine Model		ZL4105DZLDFB
Flameproof Diesel Engine Power (kW)		62
Flameproof Diesel Engine Rated Speed (r/min)		2200
Fuel Tank Capacity(L)		80
